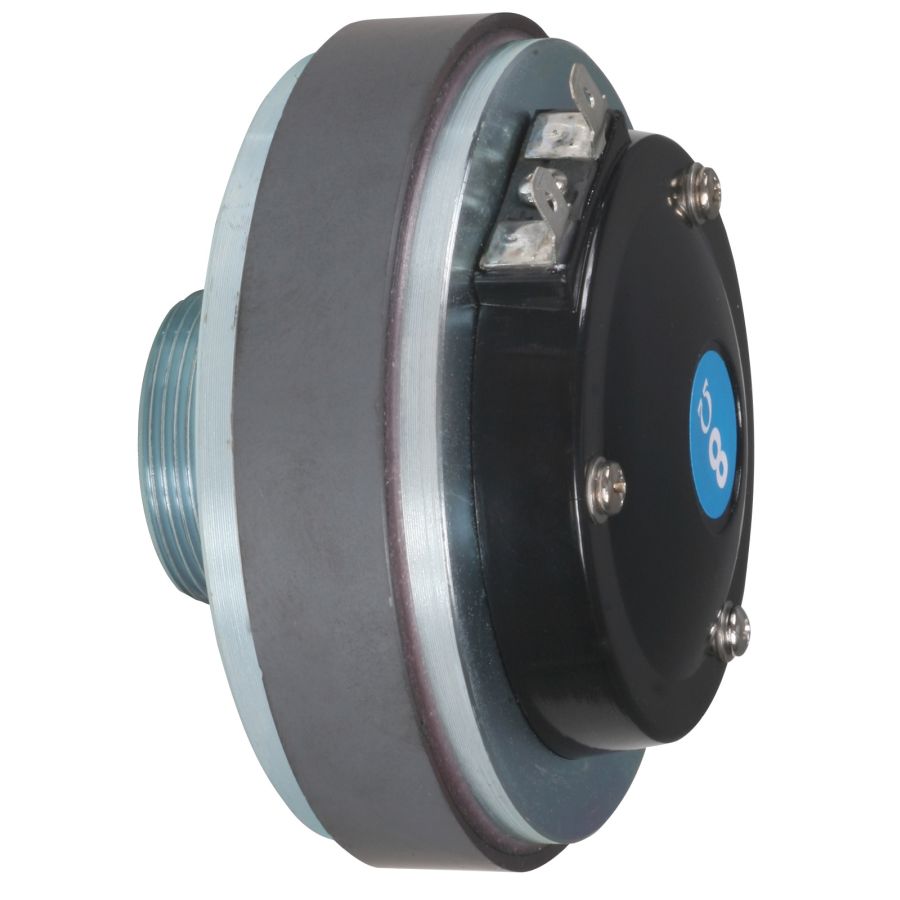

14T Driver
£58.60
In stock
SKU
3601330
PLEASE NOTE:
We strongly recommend that you spare parts fitted by a qualified guitar technician, electrical service engineer or your local music store.
- Guitar Nuts and Saddles are a default size that may require cutting, sanding or shaping to suit your guitar's unique requirements.
- Bridge pins are also made to a standard size that may require a little sanding to ensure a correct fit as Faith Guitars are handmade and the holes hand-drilled and reamed.
- Removal and replacement of guitar bridges should only be attempted by a professional.
- Guitar pickups and preamps are delicate and will require some technical skill to remove and re-fit.
- Electrical compoments for amplifiers, mixers etc should only ever be fitted by a qualified professional.
We accept no liability for any damage caused by incorrectly fitted spare parts.
Handling & Shipping Charges
| Delivery Destination | Cost (£) |
|---|---|
| United Kingdom (Post) | £4.50 |
| International (Small Parcel) | Confirmed at Checkout |
(All prices include UK VAT @ 20%)
| Barcode | 5036678113150 |
|---|---|
| Product It Fits: | PV 115 M, PV 12M, PV 15M |
| Peavey Part Number | 3601330 |
| Product Type: | Driver Magnets |
| DC Resistance | 6.4 Ohms |
| Diaphragm Kit | na |
| Dimensions | 3.44" (87.4mm) diameter x 2.30" (58.4mm) depth |
| Frequency Response | 1.5 kHz to 20 kHz |
| Horn Coupling Diameter | .939" (23.8mm) |
| Horn Coupling Threads | Standard 1 3/8" - 18" |
| Lowest Recommended Crossover | 1800 Hz at 12 dB / Octave |
| Minimal Impedance | 6.8 Ohms |
| Net Weight | 33.0 oz |
| Nominal Efficiency | 30% |
| Nominal Impedance | 8 Ohms |
| Power Capacity 1Khz - 20Khz | 1000 Hz to 20000 Hz |
| Recommeded Crossover | 2000 Hz at 12 dB / Octave |
| Sensitivity | 105 dB / 1W 1m On-axis on 90 degree H x 45 degree V Horn |
| Shipping Weight | 38 oz |
| Throat Parameter | .975" / 23.4mm |
| Voice Coil CoolingVoice Coil Cooling | na |
