1801-8 LT BW
£311.20
In stock
SKU
560480
PLEASE NOTE:
We strongly recommend that you spare parts fitted by a qualified guitar technician, electrical service engineer or your local music store.
- Guitar Nuts and Saddles are a default size that may require cutting, sanding or shaping to suit your guitar's unique requirements.
- Bridge pins are also made to a standard size that may require a little sanding to ensure a correct fit as Faith Guitars are handmade and the holes hand-drilled and reamed.
- Removal and replacement of guitar bridges should only be attempted by a professional.
- Guitar pickups and preamps are delicate and will require some technical skill to remove and re-fit.
- Electrical compoments for amplifiers, mixers etc should only ever be fitted by a qualified professional.
We accept no liability for any damage caused by incorrectly fitted spare parts.
Handling & Shipping Charges
| Delivery Destination | Cost (£) |
|---|---|
| United Kingdom (Royal Mail Parcel) | £7.50 |
| International (Large Parcel) | Comfirmed at Checkout |
(All prices include UK VAT @ 20%)
| Barcode | 0014367124347 |
|---|---|

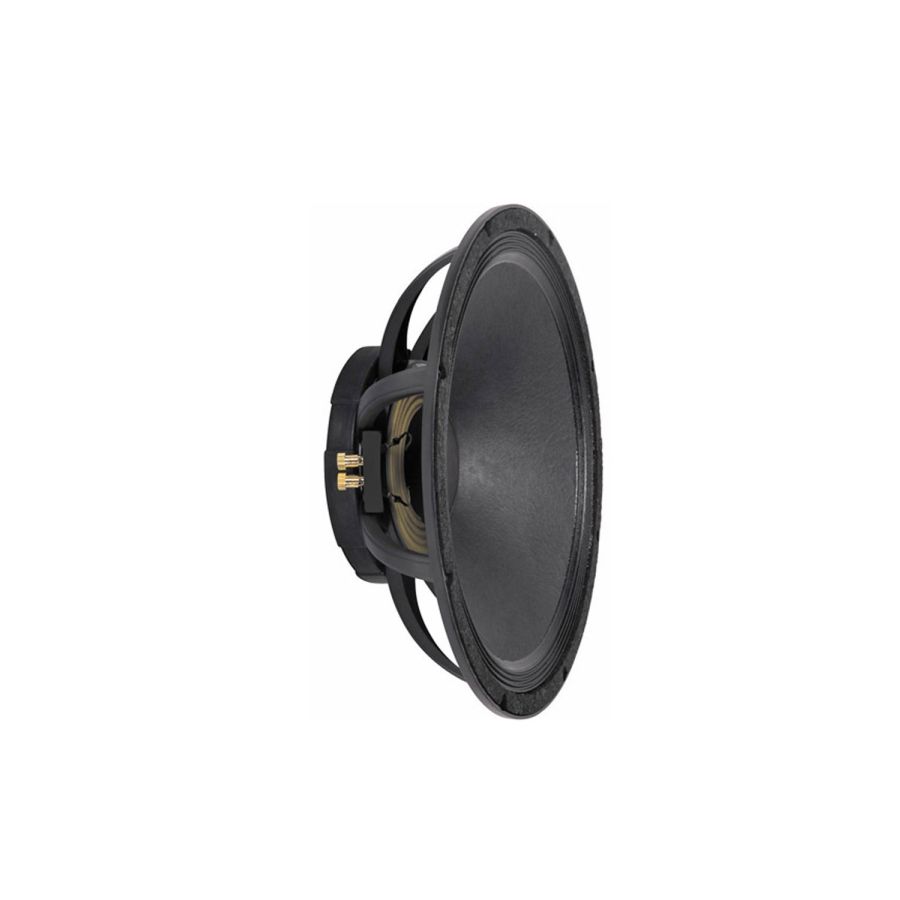

| Product It Fits: | 118 Int HC, 118 Sub Theater, 118 Sub-8 HC, DS1803, HDH-3, SP118 8 Ohm, SP118P, SP218 |
| Peavey Part Number | 560480 |
| Product Type: | Speakers |
| BL (T/M) | 18 |
| Cms (uM/N) | 131.1 |
| Disp (cu. In. / ml) | 228 / 3737 |
| Frequency Range | 35 Hz - 1 kHz |
| Le (mH) | 0.3 |
| Mms (gm) | 118 |
| Net Weight | 18 lbs / 8.2kg |
| No (%) | 3.18 |
| Pmax (Watts pgm) | 700 |
| Power - Continuous | 350W |
| Power - Peak | 1400W |
| Power - Program | 700W |
| Qes | 0.577 |
| Qms | 5.59 |
| Qts | 0.523 |
| Replacement Basket | 560490 |
| Revc (ohms) | 6.23 |
| Sensitivity | 97.0 dB / 1W 1m |
| SPL (1W 1m) | 97 |
| Vas (Litres) | 284.9 |
| Vd (cu. in. /ml) | 75.6 / 1239 |
| Voice Coil Diameter | 4.0" / 100mm |
| Voice Coil Material | Aluminium ribbon wire; Polymide-impregnated fibreglass former Nomax stiffener welded; OFHC copper leads. |
| Xmax (mm) | 5 |
| Znom (ohms) | 8 |
