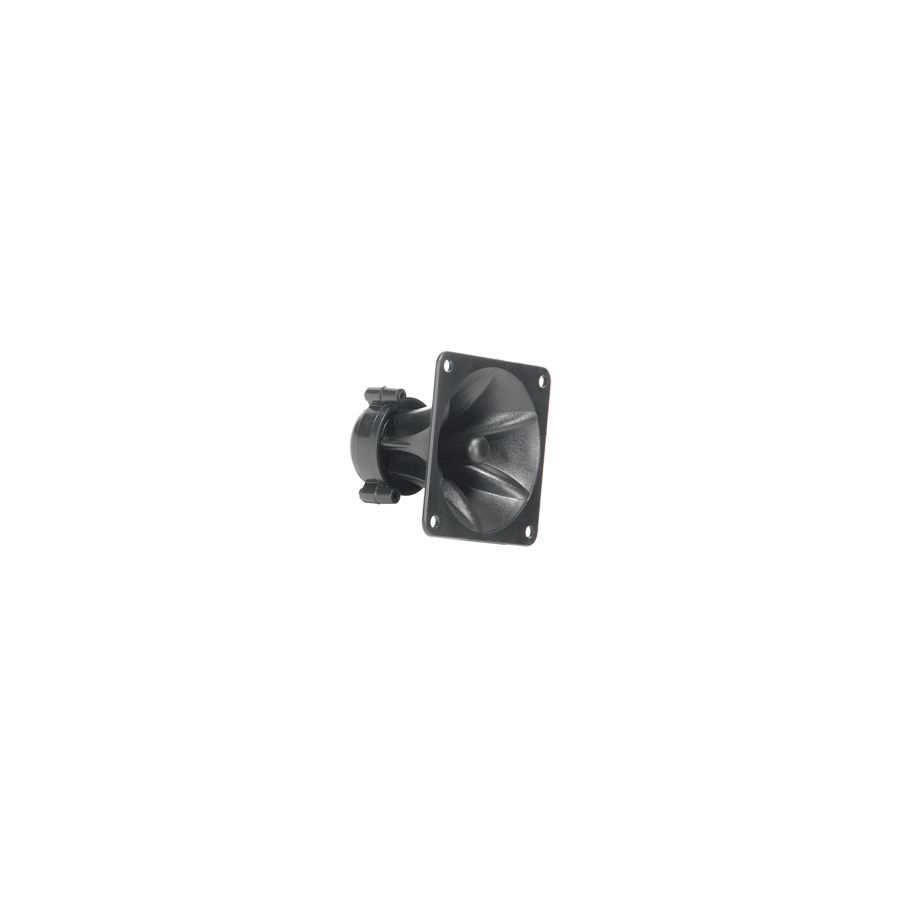

Piezo Tweeter
The specifications for the Peavey Piezo Tweeter are as follows:
Frequency Response: 4 kHz to 27 kHz
Average Sensitivity: 94 dB 1 Watt / 1 meter
Maximum Power Handling Capacity: 75 W (EIA RS426)(8 Ohm system reference)
Maximum Voltage: 15 v rms continuous 35 v rms intermittent
Maximum Temperature: 80ºC
Typical Impedance: Appears as a .13 µF capacitor
Overall Dimensions 3.34 x 3.34 x 2.69 (H x W x D)
PLEASE NOTE:
We strongly recommend that you spare parts fitted by a qualified guitar technician, electrical service engineer or your local music store.
- Guitar Nuts and Saddles are a default size that may require cutting, sanding or shaping to suit your guitar's unique requirements.
- Bridge pins are also made to a standard size that may require a little sanding to ensure a correct fit as Faith Guitars are handmade and the holes hand-drilled and reamed.
- Removal and replacement of guitar bridges should only be attempted by a professional.
- Guitar pickups and preamps are delicate and will require some technical skill to remove and re-fit.
- Electrical compoments for amplifiers, mixers etc should only ever be fitted by a qualified professional.
We accept no liability for any damage caused by incorrectly fitted spare parts.
Handling & Shipping Charges
| Delivery Destination | Cost (£) |
|---|---|
| United Kingdom (Post) | £4.50 |
| International (Small Parcel) | Confirmed at Checkout |
The specifications for the Peavey Piezo Tweeter are as follows:
Frequency Response: 4 kHz to 27 kHz
Average Sensitivity: 94 dB 1 Watt / 1 meter
Maximum Power Handling Capacity: 75 W (EIA RS426)(8 Ohm system reference)
Maximum Voltage: 15 v rms continuous 35 v rms intermittent
Maximum Temperature: 80ºC
Typical Impedance: Appears as a .13 µF capacitor
Overall Dimensions 3.34 x 3.34 x 2.69 (H x W x D)
| Barcode | 0014367000573 |
|---|---|
| Peavey Part Number | 50100 |
| Product Type: | Tweeters |
| Dimensions | 3.34 H x 3.34 W x 2.69 D |
| Frequency Response | 4 kHz to 27 kHz |
| Max Power Handling Capacity | 75W (EIA rs426) (8 Ohm system reference |
| Max Voltage | 15 v rms continuous; 35 v rms intermittent |
| Sensitivity | 94 dB 1W 1m |
| Typical Impedance | Appears as a .13 uf capacitor |
